◉ OEM Carbonated Water System Solutions
Carbonation System for Water Dispensers & Sparkling Water Technology
Carbonation System Solutions for Commercial Water Dispensers
Our carbonation systems combine precise CO₂ injection and temperature control to deliver stable sparkling water performance. To ensure optimal carbonation efficiency, they are typically integrated with water chiller systems and water filtration systems for clean input water and stable operating conditions.
Precise CO₂ Injection Control
Stable carbonation through optimized pressure regulation
Integrated Cooling & Carbonation
Designed to enhance CO₂ solubility and performance
Seamless System Integration
Engineered for countertop and commercial dispenser platforms
◉ Carbonation System Process
How Carbonation Systems Work in Water Dispensers
A carbonated water system integrates filtration, cooling, and CO₂ injection technology to deliver stable and efficient sparkling water performance.
1. Water Filtration
Remove impurities to ensure clean input water quality and stable system operation.
2. Temperature Control & Cooling
Water is chilled to improve CO₂ solubility and ensure efficient carbonation.
3. CO₂ Injection System
CO₂ is injected under controlled pressure to ensure accurate and consistent carbonation levels.
4. Mixing & CO₂ Dissolution
CO₂ is fully dissolved through optimized flow, ensuring stable and uniform carbonation output.
5. Sparkling Water Dispensing
The system delivers stable sparkling water output for integration into dispenser systems.
* This process is the foundation of carbonation systems, where consistent performance relies on clean water supply and stable cooling conditions provided by filtration systems and cooling systems.
◉ Carbonation Technology Solutions
Carbonation Technology Solutions
Two advanced carbonation system solutions, including inline carbonation systems and integrated tank carbonation systems, designed for different sparkling water applications and expandable with beverage infusion systems for flavored sparkling drink solutions.

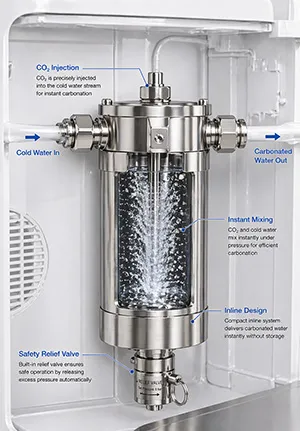

Inline Carbonation System
Water is carbonated in real time using precise CO₂ injection and pressure control for continuous output.
- Real-time CO₂ injection system
- Continuous sparkling water output
- Compact and efficient design
- Designed for high flow demand
Best for:
Commercial systems, office environments, and high-demand use

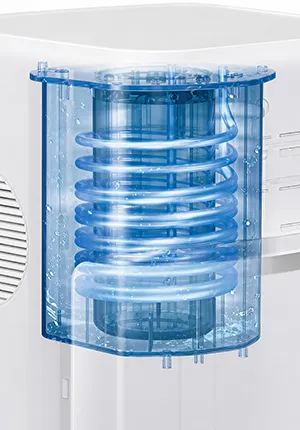

Integrated Tank Carbonation System
Water is carbonated and stored in a pressurized tank, ensuring stable carbonation levels and reliable sparkling water output.
- Pre-carbonation in integrated tank
- Stable carbonation level
- Reduced pressure dependency
- Designed for moderate flow
Best for:
Residential systems and medium-demand commercial applications
* Choose inline systems for continuous high-flow output, or tank systems for stable and consistent carbonation performance.
◉ Carbonation System Comparison
Inline vs Tank Carbonation System Comparison for Water Dispensers
Compare inline and integrated tank carbonation systems to select the most suitable solution for water dispenser applications.
← Swipe to view more →
| Feature | Inline Carbonation System | Integrated Tank Carbonation System |
|---|---|---|
| Carbonation Method | Real-time CO₂ injection under controlled pressure | Pre-carbonation and storage in pressurized tank |
| Output Mode | Continuous on-demand output | Batch or stored output |
| Flow Capacity | High (suitable for continuous dispensing) | Medium (limited by tank volume) |
| Carbonation Stability | Medium to high (dependent on pressure control) | High (stable due to pre-carbonation) |
| CO₂ Control Precision | High (real-time adjustable) | Medium (based on pre-set conditions) |
| Temperature Dependency | High (requires stable cooling) | Medium (less sensitive after storage) |
| System Size | Compact (space-efficient design) | Larger (due to storage tank) |
| Response Time | Instant carbonation response | Delayed response (storage and refill cycle) |
| Maintenance Complexity | Moderate (requires pressure tuning) | Lower (simpler operation) |
| Best Application | Commercial environments / Office use / High-demand dispensing | Residential systems / Low to medium demand applications |
Inline carbonation systems are ideal for continuous high-demand applications requiring real-time CO₂ control, while integrated tank systems provide stable batch carbonation for lower-demand scenarios, both of which can be integrated into broader drinking water system technologies.
* Performance may vary depending on system design, ambient conditions, and water quality in different carbonation system configurations.
◉ Carbonation Performance Data
CO₂ Solubility vs Temperature and Pressure in Carbonation Systems
Performance data is based on controlled testing conditions and may vary depending on system configuration, temperature, pressure, and water quality from upstream water filtration systems. Carbonation performance is fundamentally governed by CO₂ solubility, which increases at lower temperatures and higher pressure.
CO₂ Volumes vs Water Temperature at Different Pressure Levels
Based on internal carbonation testing data.
* Data based on integrated tank carbonation system testing. Actual performance may vary depending on system configuration, temperature, and pressure conditions.
◉ Engineering Considerations
Key Engineering Challenges in Carbonation System Integration
When integrating carbonation systems into countertop water dispensers, several engineering factors directly impact carbonation stability, system efficiency, and long-term performance.
Water Quality & Filtration Impact
Stable input water quality is essential for consistent carbonation performance, typically ensured by water filtration systems.
CO₂ Pressure & Control Stability
Precise CO₂ pressure control helps maintain stable carbonation performance and consistent output under different operating conditions.
Temperature Control & Cooling Requirements
Effective carbonation requires precise cooling to maintain stable performance, typically supported by water chiller systems.
System Integration & Flow Coordination
Stable carbonation performance requires coordination between filtration, cooling, and CO₂ modules within integrated system designs.
OEM INTEGRATION SOLUTIONS
OEM Carbonation System Integration for Water Dispensers
We provide full OEM carbonation system integration solutions, combining carbonation modules with filtration systems, cooling systems, and dispenser platforms for scalable production.
A complete OEM solution covering carbonation system design, integration, and scalable manufacturing.
Custom Design
Tailored carbonation system design for your product positioning and application needs.
Carbonation Integration
Flexible integration of inline and tank systems with optimized pressure and flow control.
Cooling Optimization
Optimized cooling and temperature control to enhance CO₂ solubility and carbonation performance.
Private Label & OEM Support
Full OEM and private label support including branding, packaging, and customization.
Quality Assurance
Comprehensive testing ensures stable carbonation and long-term system reliability.
